Manage part specifications

Guide for manufacturers to view and manage part specifications, customer references, requisitions, and manufacturing constraints in the Phasio platform

Video tutorial

Part Intelligence

Watch on YouTube

Phasio automatically stores the manufacturing information for any part that has been ordered through Phasio. This includes all the part specifications like materials, post-processing options, quality requirements and constraints.

View part specifications

Pro plan

The Parts pages are available on the Pro plan.

  1. Navigate to Production > Parts > Specifications on the sidebar menu
  2. A table of all parts and their specifications will be populated onscreen, including the Created and Last Updated dates
  3. Click on a part to open the specification page
  4. The specification page shows these sections from top to bottom:
    • The part revision name, with a View Revision button
    • A 3D view of the part, with its dimensions and volumes
    • Manufacturing specifications: units, process, material, colour, precision, infill, and post-processing
    • Orders and quotes
    • Customers
    • Manufacturing Constraints
    • Routing Templates and Production instructions (Factory Floor plan)
    • Production file

Add a customer reference

A customer reference allows manufacturers to associate customer organizations to specific parts such that they are able to keep track of part manufacturing information for each customer. Manufacturers can associate a part specification with multiple customer references. Learn how to add a customer reference below:

  1. On the specification page, click + in the Customers section
  2. In the Add Customer Reference dialog, input the following details:
    • Reference: The customer's part number or reference
    • Customer Organisation: The customer organization that this reference will be associated to
    • Pricing Tiers: Optionally, add tiers with a Min Qty and a Price. When this customer orders the part, Phasio uses the unit price of the highest tier whose minimum quantity the order meets, instead of the auto-quote
    • Show in catalog?: Whether to show this part in the customer-specific catalog
  3. Click Add Reference

Each reference in the list shows In Catalog when the part is in the customer's catalog, and either the number of pricing tiers or Auto-quoted. Use the ··· menu on a reference to Edit or Delete it.

View customer orders

  1. On the specification page, scroll to the Orders and quotes section
  2. This shows a list of orders that include this part. Each row shows the order number, the quantity, the price, how long ago the order was created, and the customer. Hover over the price to see whether it was auto-quoted or manually quoted. Older orders are collapsed
  3. Click on the order to view the order details

Add manufacturing constraints

Phasio allows manufacturers to add manufacturing constraints to specific parts so that such manufacturing information records are available whenever they need to manufacture the same part again.

  1. On the specification page, click + in the Manufacturing Constraints section
  2. In the Add Manufacturing Constraint dialog, select the Constraint Type:
    • Fixed Orientation: Locks the orientation of the part during manufacturing. Set the orientation in the 3D viewer
  3. Click Add Constraint

Use the ··· menu on a constraint to View or Delete it.

Add production instructions

Factory Floor plan

Production instructions are available on the Factory Floor plan.

Production instructions are internal notes for the operators who make the part, such as "Place upright only". Customers never see them. Operators see them wherever they plan and build the part: on the part in the Backlog, on the progress screen, in the Download Files dialog, and on the build screen.

  1. On the specification page, scroll to the Production instructions section
  2. Click Add instruction
  3. In the Add Instruction dialog, enter the following details:
    • Instruction: The text of the instruction, up to 2000 characters
    • Operation: All operations, or one operation. An instruction for one operation is listed first at that operation. Other operations show it muted, under the other steps
  4. Click Add Instruction

Use the icons on an instruction to Move up, Move down, Edit or Delete it. The order you set is the order operators see.

Upload a production file

The production file is the print-ready file that production downloads instead of the original CAD file, for example a repaired or pre-oriented .3mf. It is internal and never shown to customers. The production file does not need the Factory Floor plan.

  1. On the specification page, scroll to the Production file section
  2. Click Upload production file and choose a CAD file, such as .stl, .step or .3mf

The section then shows the file name, its format and who uploaded it. Use the icons next to the file to download, replace or remove it. When you remove it, production downloads the original file again.

A specification with a production file shows a green Production file icon next to the part in the Backlog. Hover over it to see the file name. When you download parts from the Backlog or the build screen, the Production file choice uses this file, and falls back to the original CAD file for parts that have none. 👉 Part Backlog

Routing templates

The routing templates section on a part specification lists routing templates for that part. A routing template is a saved, reusable sequence of operations — the routing a production run follows through your shop. From this section you can author, approve, set a default for, and deprecate templates; approved templates are immutable once a run references them.

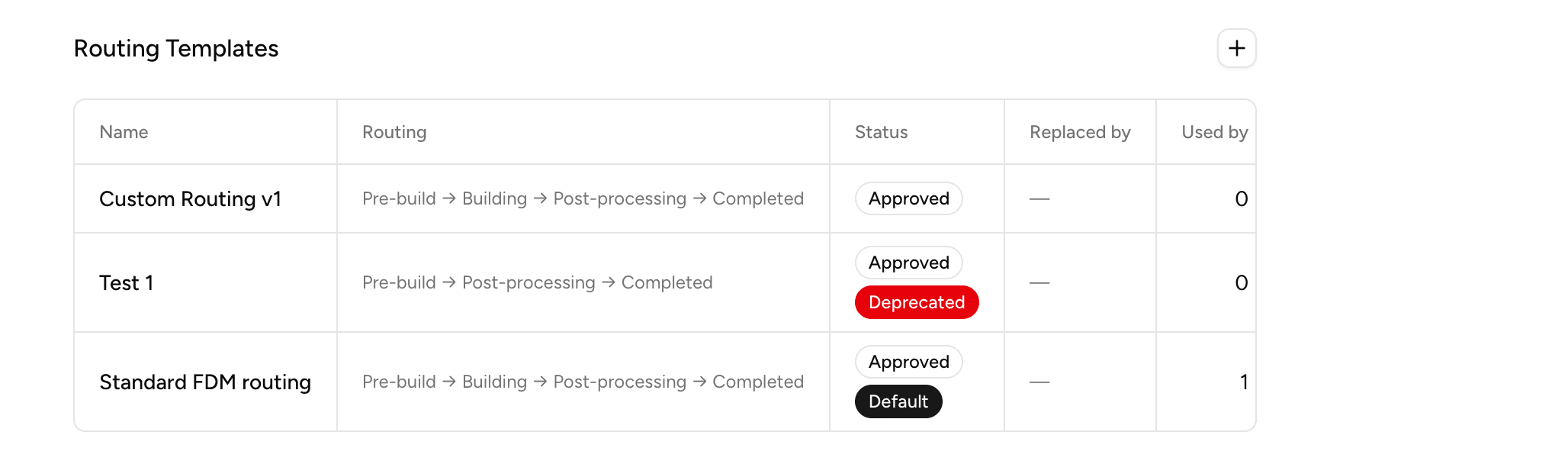

The routing templates section on a part specification, listing its routing templates.

👉 Manage routing templates
