Workflow example: Powder bed printing

A concrete end-to-end example of a six-step powder bed 3D printing workflow, from nesting queue through final post-processing and completion.

In this example, we demonstrate how to implement a simple powder bed 3D printing workflow using operations in Phasio. The workflow covers the entire production process from initial part queuing through final post-processing and quality control, providing a practical reference for manufacturers setting up similar production workflows.

Powder bed 3D printing workflow structure

This implementation creates a six-step workflow that efficiently manages powder bed printing operations while maintaining clear visibility and control over each production stage.

Workflow sequence

The example workflow consists of six sequential operations:

  1. Waiting for Nesting: Initial backlog management.
  2. Printing: Active production with build preparation.
  3. Post-Printing: Essential post-production processes (cooling, depowdering, etc.)
  4. Black Dye: Optional finishing operations.
  5. Quality Control: Final inspection and validation.
  6. Completed: Workflow completion and order fulfillment.

Operation configuration

Operation NameSequenceGroup Name PrefixStep TypeBuild ConstraintStep Naming StrategyView TypeFinal Station
Waiting for Nesting0WaitingBaseNoneAlways RenamePartFalse
Printing1BuildUpload Bill of PartsMaterialAlways RenameGroupFalse
Post-Printing2BatchBaseMaterialInherit from Previous StepGroupFalse
Black Dye3Dye-BatchBaseMaterial and ColorInherit from Previous StepGroupFalse
Quality Control4QC-BatchQuality ControlNoneInherit from Previous StepPartFalse
Completed5FinishedBaseNoneAlways RenamePartTrue

Operation details

Waiting for Nesting

This operation holds the backlog of parts that have been scheduled for production.

  • Uses the Base step type — parts must be progressed manually.
  • Parts wait here until they are ready to move to Printing.

Printing

When parts enter this operation, the Upload Bill of Parts step type lets manufacturers download each group of same-material parts (as a ZIP or CAMSPEC file) for nesting, then upload the nested .3mf file to stage the parts.

  • In the Group view type, these parts appear as consolidated groups. To give a group a custom name, right-click it in the Backlog group view and select Rename, or click the Rename group (pencil) icon on the build screen.

Post-Printing

Parts entering this operation are grouped by material constraints to ensure efficient processing. The Inherit from Previous Step naming strategy keeps the group name when the moved set's composition is unchanged; a partial split mints a new groupId under the old prefix. This ensures consistent build identification through essential post-production steps such as cooling and sandblasting.

Black Dye

An optional finishing operation where parts are grouped by both material and color constraints to ensure consistent dye treatment. The Inherit from Previous Step naming strategy keeps group names from previous stages when composition is unchanged; a partial split mints a new groupId under the old prefix.

Quality Control

This operation has no grouping constraints. The Inherit from Previous Step naming strategy maintains traceability: when composition is unchanged the group name carries through; a partial split mints a new groupId under the old prefix.

Completed

The final stage of the workflow.

  • Parts arriving here are automatically renamed with a "Finished" prefix using the Always Rename naming strategy.
  • This operation is designated as the final station (where Final Station = True), marking the completion of the production workflow.
  • As parts reach this stage, the order's Production tab shows the completed and total quantity of each part, for example 3 / 4. The Completed operation in the Backlog lists work completed in the last 30 days. Click Load more to see older work.
  • Nothing is progressed out of the final station; the build screen shows "This is the final operation — nothing leaves this step."
  • This station can be used to indicate open boxes or staging areas until the entire order is prepared for shipment.

Workflow operation

Part progression and filtering

When advancing parts from one operation to the next on the progress screen, manufacturers can apply filters to optimize build preparation and workflow efficiency. Filters include Customer, Dispatch Date, Visits Operations, Volume, Area, Height, Width, and Length. Parts can also be grouped by order and sorted by dispatch date or volume. The Visits Operations filter is especially useful for grouping parts that share identical post-processing workflows, supporting efficient planning and resource allocation.

Part progression flow

  1. From the order's Production tab, use Create work orders to schedule parts into production. Each part enters the workflow at Waiting for Nesting once its work order is created.
  2. On the progress screen of Waiting for Nesting, production teams download parts grouped by material with Download Parts on the lane heading into Printing.
  3. Build preparation is completed offline using nesting software.
  4. Upload Bill of Parts on the same lane takes the nested .3mf file and stages its parts into a new group. Click Proceed to move the group into the Printing operation.
  5. On the build screen, stage parts per destination, assign a name to the outgoing group, and click Progress N to commit the move without leaving the page.

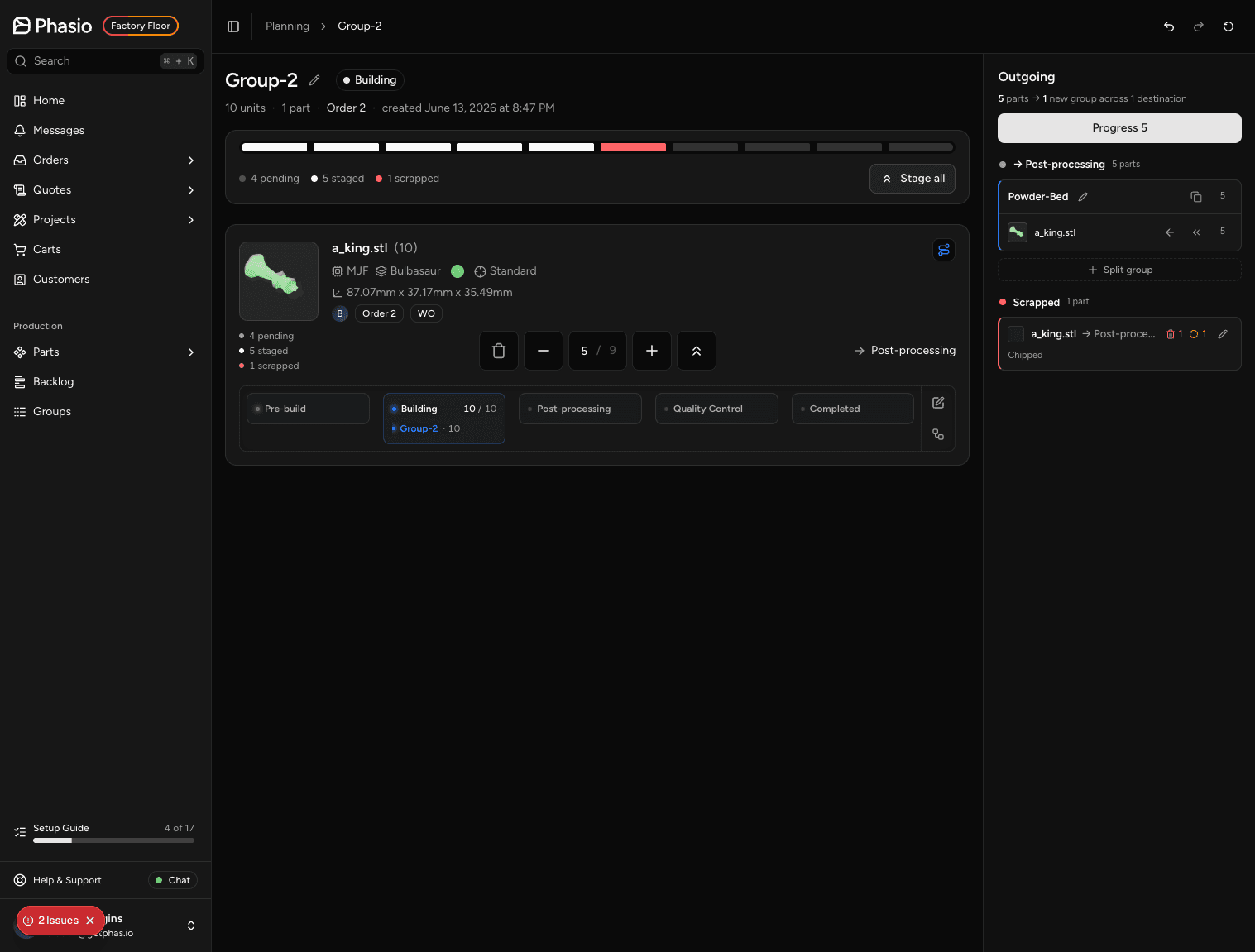

Build screen for an MJF powder-bed part, with parts staged into a named build and the Progress action ready.

  1. Repeat for each subsequent operation — Post-Printing, Black Dye (if applicable), and Quality Control — using the same build screen flow.

⚠️ At any operation you can scrap individual parts from the build screen and optionally queue a replacement quantity — the replacement tops up the existing work order at the first operation.

Workflow efficiency benefits

This example illustrates how operation configuration can significantly improve production efficiency while preserving the flexibility to meet diverse manufacturing needs and optional processing steps. Some advantages include:

  • Material-based grouping minimizes error rates and reduces setup time.
  • Batch processing via .3mf uploads streamlines high-volume production and simplifies build preparation.
  • Flexible routing supports various customer requirements and custom workflows.
  • Enables real-time tracking and visibility into part operations throughout the workflow.
